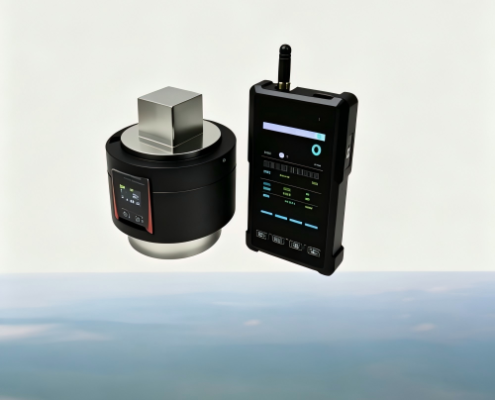

Torque Tester 20000
1.It can measure both static torque and rotational torque.
2.The torque accuracy can reach ±0.5% FS.
3.The torque range and the specifications of the sleeve can be customized according to your requirements.
4.The sleeve is equipped with a display screen, which can show the tightening torque in real time.
5.It features a function to switch and display between real-time torque and peak torque options.
6.It has the function of real-time wireless torque data transmission, and the wireless data transmission range is less than 100 meters.
7.The accompanying computer testing software can display real-time torque and automatically save information such as the number of bolt fastenings and torque curves in an Excel format file, making it convenient for tracking and querying.
Parameter Details
| Model | Rated Torque
(N.M) |
Overall Dimensions(mm) | Material | |||||
| A | B | C | D | E | F | |||
| LEAH-N20000 | 0-20000 | 180 | 50.8 | 50.8 | 60 | 128 | 153 | Alloy steel |
